What materials can the MC-315 Pneumatic Cold Saw Machine cut?

The MC-315 Pneumatic Cold Saw Machine is highly versatile and capable of cutting a wide range of metal materials, including iron pipes, carbon steel, stainless steel, aluminum, and copper tubes, ensuring precise results for all your fabrication needs.

Does the MC-315 Automatic Metal Pipe Cutter support custom voltage?

Yes, while our standard configuration is 380V/50Hz, we offer customizable voltage options to ensure seamless integration with the power standards of your specific international factory environment.

Why is the MC-315 ideal for high-precision production lines?

This machine features advanced pneumatic clamping and high-speed cutting technology, delivering clean, burr-free edges that minimize the need for secondary processing, thereby significantly boosting your overall production efficiency.

What kind of after-sales support do you provide for the MC-315 Pneumatic Cold Saw Machine?

We provide a comprehensive one-year warranty for every Pneumatic Cold Saw Machine we sell. Our professional technical team offers 24/7 online support to assist with installation, operation guidance, and any maintenance requirements, ensuring your production line runs smoothly without unnecessary downtime.

1 3

yasenmachine

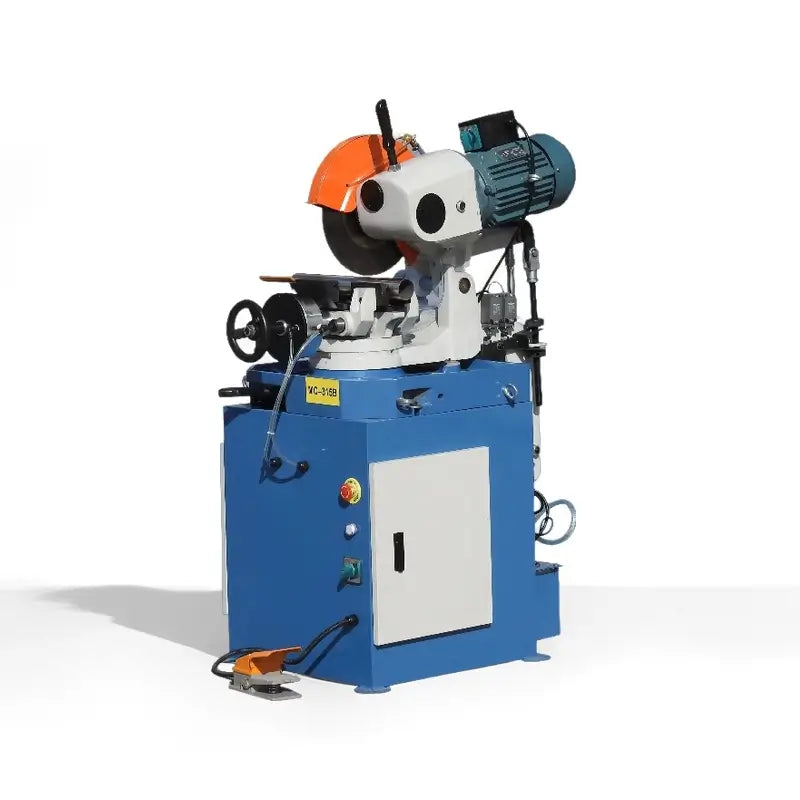

MC-315 Pneumatic Cold Saw Pipe Cutting Machine – High-Precision Automatic Metal Tube Cutter

$0.00Price to be negotiated

Sale Sold out

✓ Get a free technical proposal — Response within 24 hours

Technical Specifications & Capabilities

Model: MC-315B

Cutting Angle: 45-90°

Max. Cutting Capacity (Round Pipe): 90 mm

Max. Cutting Capacity (Square Pipe): 80 mm

Max. Mitre Cutting Diameter: 80 mm

Motor Power: 2.4/3.0 kW

Voltage: 380V/50Hz (Customizable for international markets)

Air Pressure: 0.6-0.8 MPa

Blade Speed: 60/120 rpm

Cooling Pump: 40W

Weight: 235 kg

Dimensions: 600 * 800 * 1450 mm

Applicable Materials: Iron, Carbon Steel, Stainless Steel, Aluminum, Copper pipes, etc

Material Processing Guidelines

MC-315 Pneumatic Cold Saw Machine for Industrial Efficiency

Are you looking for a reliable Pneumatic Cold Saw Machine? The MC-315 is designed for modern metal fabrication. It meets the most rigorous industrial demands. This Pneumatic Cold Saw Machine combines advanced pneumatic automation with professional technology. It ensures superior output for your production line.

The MC-315 acts as an efficient Automatic Metal Pipe Cutter. It provides precision results for steel and carbon tubes. It also cuts copper tubes with ease. This Automatic Metal Pipe Cutter improves your daily workflow. It reduces manual labor significantly. You will notice better consistency across large production runs.

High-Precision Performance of MC-315 Pneumatic Cold Saw Machine

System: We use professional-grade Pneumatic Cold Saw Machine technology. It offers maximum stability during operation.
Application: Use this Pneumatic Cold Saw Machine for high-precision metal pipe cutting. It fits diverse manufacturing projects perfectly.

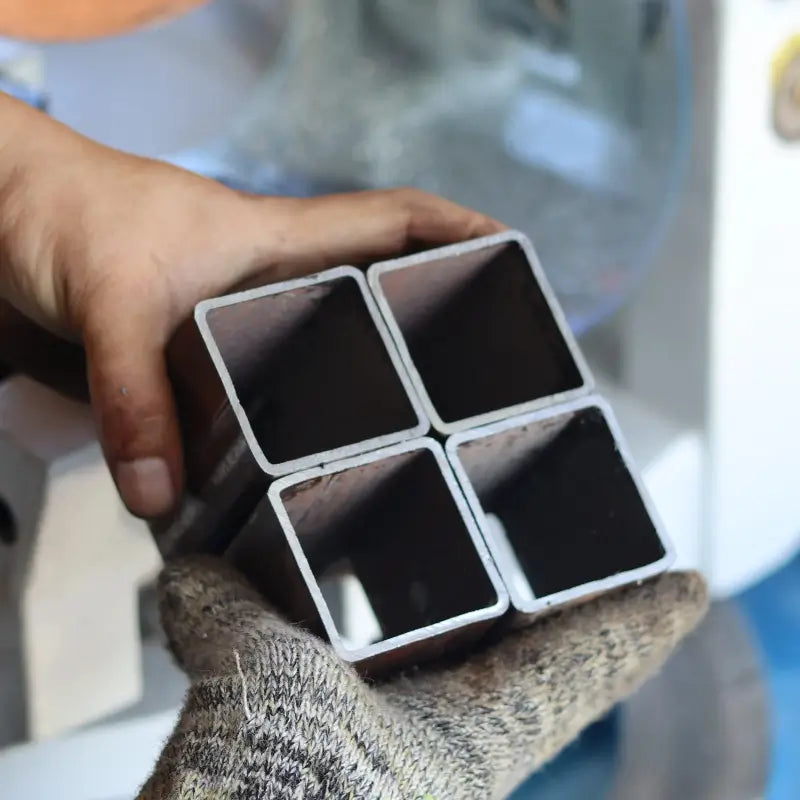

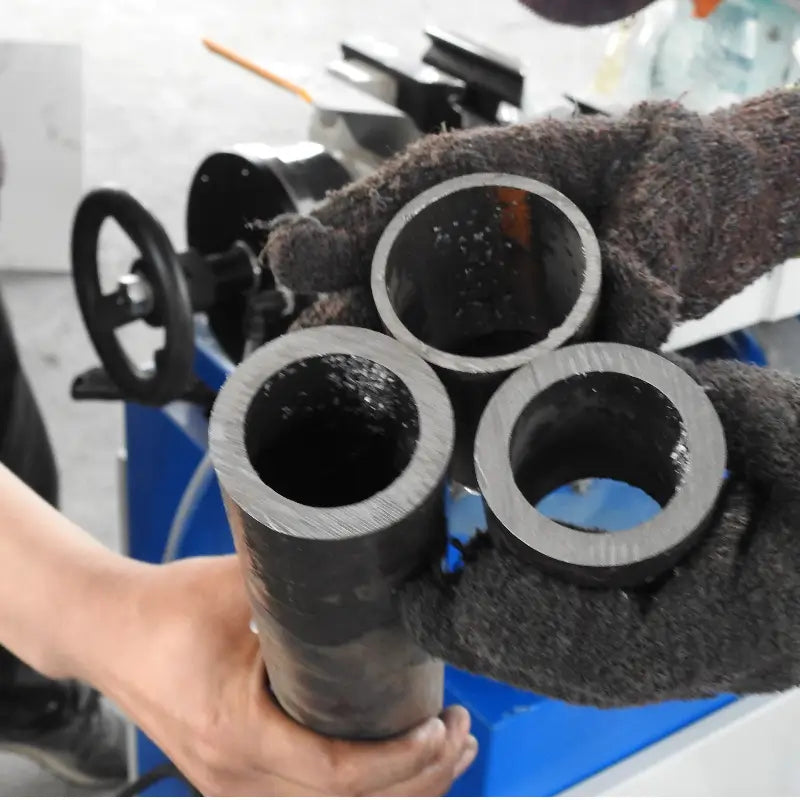

Finish: It produces a clean, burr-free edge. This reduces the need for secondary processing steps.
Performance: The high-speed automatic operation maximizes your output. It is built for efficiency.
Versatility: This Pneumatic Cold Saw Machine handles various materials. It cuts iron, stainless steel, and aluminum pipes easily.
Maintenance: We use durable components. This ensures long-term reliability for your facility. You will enjoy lower operational costs.
Care: Regular blade inspection is vital. Keep the pneumatic system clean for optimal performance. Proper care extends the machine's life.

For more information on industrial metal standards and safety, you can refer to the OSHA Metalworking Safety Guidelines.

Need further processing? Check out our CNC Pipe Bending Machine to complete your production line.
