Description

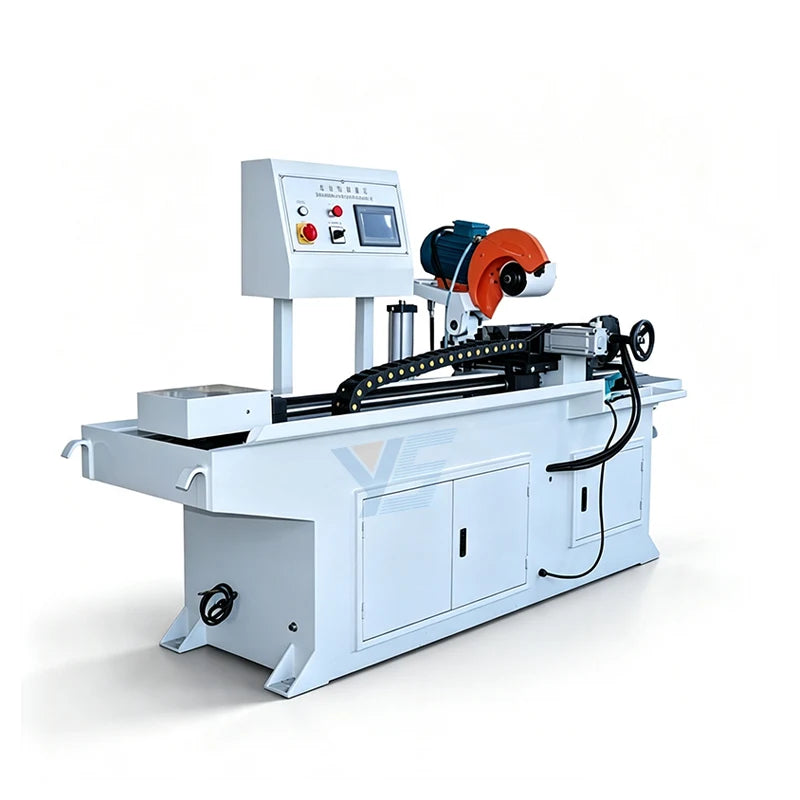

Automatic Pipe Cutting Machine MC-325CNC for High-Precision Metal Fabrication Lines
Upgrade your industrial fabrication line with the Automatic Pipe Cutting Machine MC-325CNC, an automated tube cutting solution for metal processing.
This auto pipe cutting machine delivers exceptional accuracy and smooth edges, maximizing efficiency while minimizing material waste in high-volume production.
Technical Specifications
The MC-325CNC features robust configurations optimized for industrial performance and maximum structural rigidity.
| Technical Feature | Specification Details (MC-325CNC-1M) |
|---|---|
| Cutting Angle | 90° |
| Max. Cutting Round Tube | 90mm |
| Max. Cutting Square Tube | 80mm |
| Servo Motor | 1kW |
| Saw Blade Motor | 2.4 / 3.0 kW |
| Voltage | 380V / 50Hz (Customizable for overseas power standards) |
| Air Pressure | 0.6 - 0.8 MPa |
| Saw Blade Speed | 60 / 120 RPM |
| Cooling Water Pump | 40W |
| Machine Weight | 750 kg |
| Dimensions (L x W x H) | 2100mm × 1000mm × 1500mm |
| Applicable Materials | Iron pipes, carbon steel, stainless steel, aluminum, copper pipes, and other metal profiles |
Superior Automatic Pipe Cutting Machine Performance

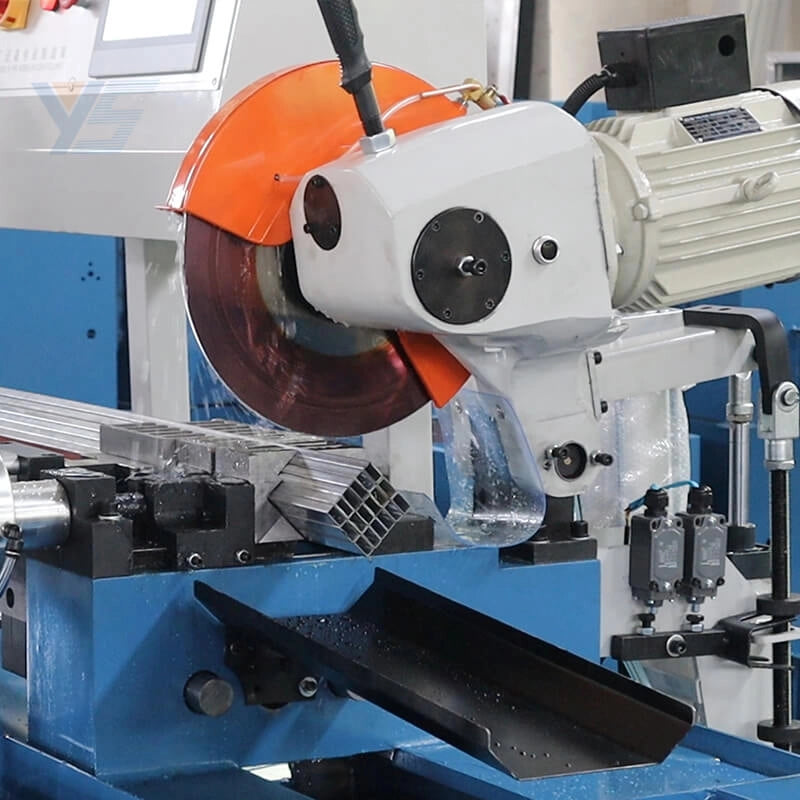

Experience elite cutting quality. Our stable sawing mechanisms ensure every cut meets strict manufacturing demands without secondary grinding.
- Burr-Free Finish: Leaves smooth edges that eliminate post-processing operations like deburring.

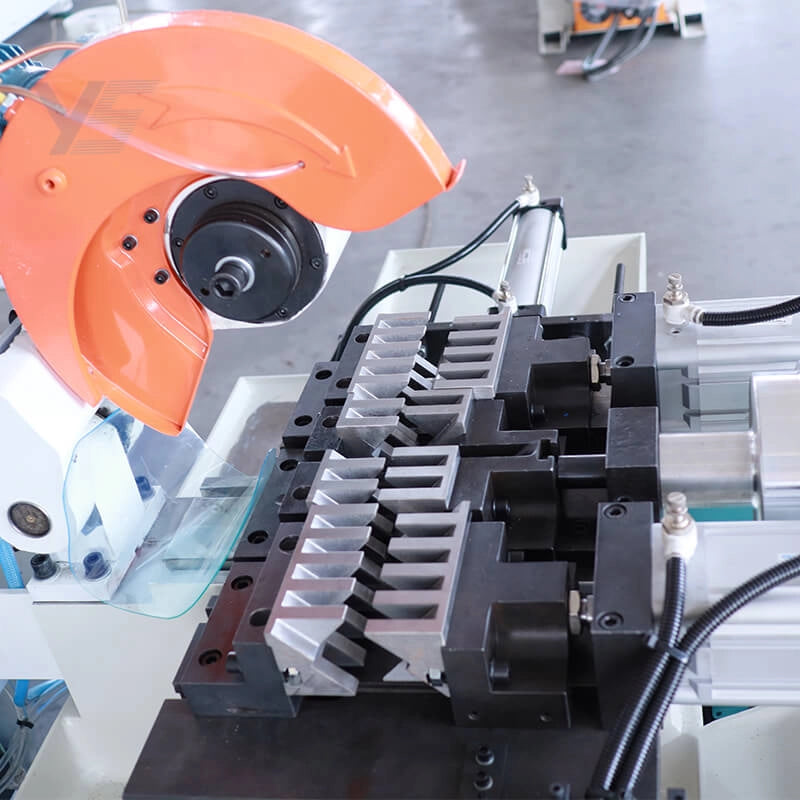

- Zero Deformation: Precision clamping secures the pipe firmly without crushing thin-walled tubes.
- High Length Accuracy: The automatic tube cutting machine system uses servo-driven feeding for tight tolerances.
Applicable Materials & Industry Applications
The MC-325CNC offers broad material versatility and is trusted across global manufacturing sectors for reliable results.
- Supported Materials: Iron pipes, carbon steel, stainless steel, aluminum tubes, copper pipes, and various profiles.
- Target Industries: Automotive parts, fitness equipment, HVAC ductwork, aerospace, and steel structure construction.
Core Advantages & Differentiators
Equipped with a rigid mechanical structure, this system ensures tight length tolerances on every single cut.

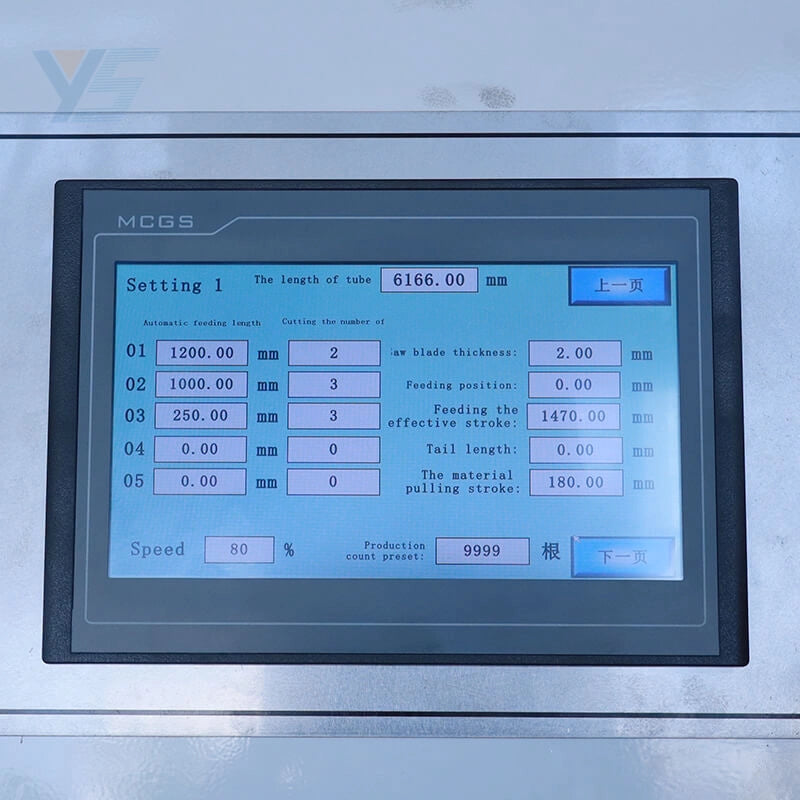

- Smart Operation: A user-friendly CNC touch-screen interface allows operators to input parameters quickly.
- Durability & Safety: Built with premium components designed for 24/7 continuous factory operations.
- Efficiency: High-speed cycles reduce labor costs while maintaining consistent output quality.
Global Warranty & Technical Support
We stand behind our machinery with comprehensive engineering and after-sales support to secure your investment.
- Warranty: 1-year international warranty covering core mechanical and electrical components.
- Technical Support: Lifetime remote troubleshooting, video operation guides, and engineering assistance.
- Customization & OEM: Support for specialized voltage requirements and automated loading system integration.
-
