What is an Automatic CNC pipe bending machine and how does it improve production efficiency?

An Automatic CNC pipe bending machine is a highly automated device designed to bend metal pipes with precise angles and radii. By using a programmable control system, it significantly increases production speed, reduces labor costs, and ensures consistent quality for mass production compared to manual or semi-automatic methods.

Can this hydraulic pipe bending machine be customized for specific pipe diameters or shapes?

Yes, our hydraulic pipe bending machine is highly versatile. While the standard model handles pipes up to 50 mm, the "Max. Feeding Outer Diameter" can be customized to meet your specific production requirements. We also welcome discussions with our technical department to design specialized tooling for unique pipe profiles, such as square or irregular shapes

Why choose us among various pipe bending machine manufacturers?

As experienced pipe bending machine manufacturers, we prioritize technical precision and machine reliability. Our machines feature a robust 5kW hydraulic motor and advanced control systems (B.O.D., D.B.B., P.O.B.) to ensure long-term industrial stability. We provide full technical support and expert consultation to ensure the machine perfectly matches your workshop’s operational needs.

How do I determine if a Square pipe bending machine or a round pipe model is right for my project?

The choice between a square pipe bending machine and a round pipe model depends on your end-product design. Our 50CNC-3A-1S model is engineered for high flexibility. If you are handling a mix of round and square tubing, please provide your material specifications to our technical team; we can supply customized clamping and bending dies to ensure your specific pipe geometry is processed with maximum accuracy.

1 3

yasenmachine

Automatic cnc pipe bending machine

$0.00Price to be negotiated

Sale Sold out

Shipping calculated at checkout.

✓ Get a free technical proposal — Response within 24 hours

Technical Specifications & Capabilities

Technical Specifications

Max. Bending Capacity (S=40kgf/mm²): Φ50 × 2.0 mm
Min. Bending Radius: ≥ 1.5D mm
Max. Feeding Outer Diameter (Customizable): Φ48 mm
Bending Radius Range: 20–180 mm
Bending Angle Range: 190 degree
Max. Effective Mandrel Distance: 3200 mm
Max. Feeding Distance: 2500 mm
Hydraulic System Motor Power: 5 kW
Bending (B.O.D.) Speed: 105 deg/sec
Feeding (D.B.B.) Speed: 1400 mm/sec
Rotation (P.O.B.) Speed: 200 deg/sec
Bending (B.O.D.) Accuracy: ±0.05 degree
Feeding (D.B.B.) Accuracy: ±0.05 mm
Rotation (P.O.B.) Accuracy: ±0.05 mm

Note: The above parameters are for reference only. For specific requirements, please contact our technical department for custom design.

Material Processing Guidelines

Material Processing Guide

Our CNC pipe bending solutions are optimized for various industrial metals, ensuring high-quality surface finish and dimensional accuracy.

Material Compatibility

Stainless Steel: Suitable for high-precision components requiring corrosion resistance, such as exhaust systems and food-grade hardware.
Carbon Steel: Optimized for structural applications in furniture, industrial frames, and construction.
Iron & Mild Steel: Cost-effective processing for general fabrication, fencing, and hardware production.
Non-Ferrous Alloys: Designed for lightweight, specialized parts including aluminum tubes and alloy conduits.

Industry Suitability

Automotive: Reliable bending for fuel and brake lines.
Furniture: Efficient shaping for modern tubular designs and frames.
Construction: Precise fabrication for railings and structural supports.
Fitness Equipment: Consistent, high-speed production for gym machinery.

High-Performance Automatic CNC Pipe Bending Machine

The 50CNC-3A-1S is a premium automatic cnc pipe bending machine designed for extreme precision in modern manufacturing environments.

This versatile hydraulic pipe bending machine handles heavy-duty steel and stainless steel tubes with exceptional stability and high-speed operation.

It serves as the ideal solution for automotive parts, furniture production, and industrial workshops requiring a reliable square pipe bending machine.

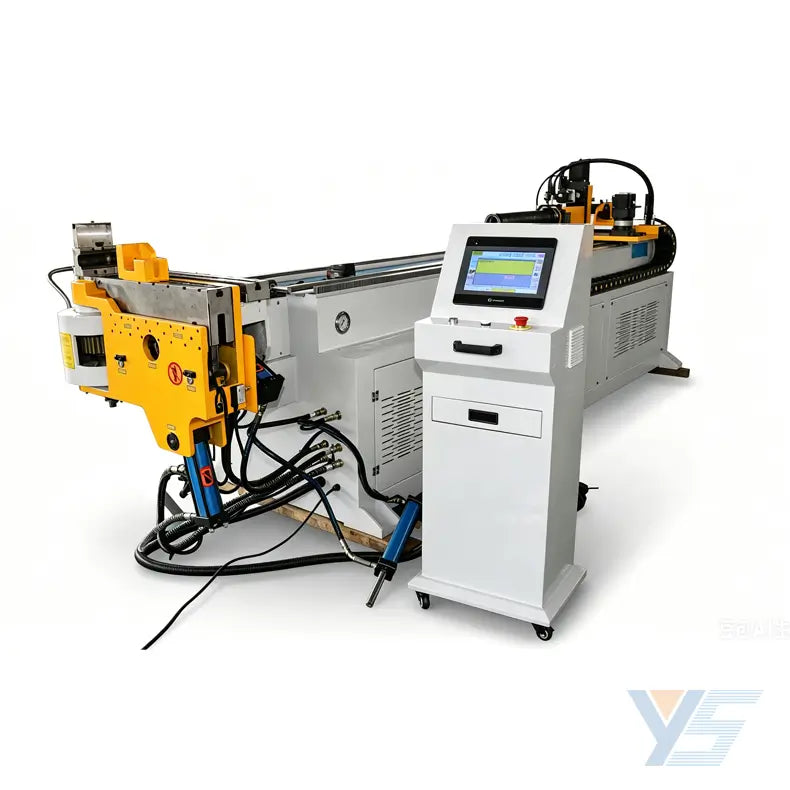

pipe bending machine manufacturers supply fully automatic CNC hydraulic pipe bending machine, touch screen metal square round stainless steel tube bending equipment factory white background product image

Advanced Automatic CNC Pipe Bending Machine Features

Precision Control: Utilizes an advanced cnc pipe bending machine system for superior accuracy (±0.05°).
Robust Power: Features a 5kW motor to ensure consistent hydraulic force during intensive batch production cycles.
Optimized Efficiency: Engineered for speed with a bending rate of 105°/sec and a feeding speed of 1400 mm/sec.
Versatile Processing: Supports bending angles up to 190° and flexible radii ranging from 20mm to 180mm.

High precision servo feeding system on a CNC operation pipe bending machine for accurate tube positioning

Technical Specifications

Technical Parameter	Specification
Max. Bending Capacity	Φ50 x 2.0 mm
Min. Bending Radius	≥1.5D
Max. Feeding Outer Diameter	Φ48 mm
Bending Radius Range	20–180 mm
Bending Angle Range	190°
Max. Effective Clearance	3200 mm
Max. Direct Feeding Distance	2500 mm
Hydraulic Motor Power	5 kW
Bending Speed (B.O.D)	105°/sec
Feeding Speed (D.B.B)	1400 mm/sec
Turning Speed (P.O.B)	200°/sec
Bending Accuracy	±0.05°
Feeding Accuracy	±0.05 mm
Turning Accuracy	±0.05 mm

Note: These parameters are for reference. Yasen Machinery provides customization based on your production needs.

Why Choose Yasen Machinery?

As leading pipe bending machine manufacturers, we specialize in reliable, tailor-made industrial bending solutions for global clients today.

Our heavy-duty equipment is specifically built to streamline complex workflows, reduce raw material waste, and improve final output quality now.

We ensure every unit leaves our factory ready for long-term operation. Trust our engineering team for durable and efficient metal fabrication.

pipe bending machine manufacturers factory workshop real shot, multiple CNC hydraulic pipe bending machines production line display, industrial metal tube bending equipment factory workshop photo

Contact Us for a Custom Solution

Need a professional equipment proposal? Our technical team is ready to assist you with specific configurations for your unique project requirements.

We provide a top industrial 50CNC-3A-1S system to optimize your plant. This solution ensures rapid returns on your capital investment very quickly.

Click here to view more Full Automatic Pipe Cutting Machines and receive a proposal within 24 hours.

Alternatively, visit our official 1688 store for more machine details and factory-direct pricing today.
